<h2><strong>Product Features</strong></h2>
<ul>
<li><strong>ZERO EMISSIONS</strong></li>
<li><strong>NO Noise</strong></li>
<li><strong>NO Drip Pans</strong></li>
<li><strong>NO Heat</strong></li>
<li><strong>NO Fueling/Fueler</strong></li>
<li><strong>NO Maintenance</strong></li>
<li><strong>Total Spark-Free Construction</strong></li>
</ul>
</div>
</div>
<div class="et_pb_module et_pb_text et_pb_text_4 et_pb_text_align_left et_pb_bg_layout_light">
<div class="et_pb_text_inner">
<ul>
<li><strong>Secure Locker for Storage</strong> of Convertor/Cables During Shipment</li>

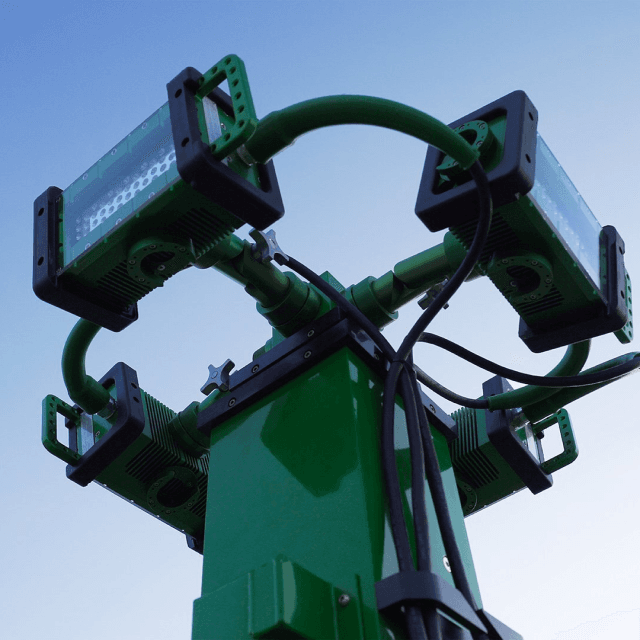

<li><strong>Independent Aiming</strong> of Each BRICK®</li>
<li><strong>Ability to Remove</strong> a BRICK® (vessel entry / work light / independent rental)</li>
<li><strong>360° Lighting</strong> of a +400ft Diameter Area</li>
<li><strong>Class 1 &amp; 2, Div 1</strong> Electronics/Plug receptacles</li>
<li><strong>Compact size:</strong> 6’x6’, 2,250 lb, retractable 17’ mast
<ul>
<li>Note: 1,250 lbs is ballast sealed in base for high wind/tip over protection</li>
</ul>
</li>
<li><strong>Low Power Draw:</strong> 110/220VAC, 20 Amp
<ul>
<li>Powers 4 BRICKs + 1 extra Plug-in BRICK</li>
</ul>
</li>
<li><strong>Reduce Tripping Hazards</strong>
<ul>
<li>Uses a SINGLE Plug-in cord</li>
</ul>
</li>
<li><strong>Options:</strong> – Tow Bar/Rollers – Lifting Eyes – Ordinary Location Construction &amp; Electronics</li>
</ul>
</div>
</div>
<p>It is a requirement to use CERTIFIED Explosion Proof lighting within a zone declared a hazardous location. Refinery customers have begun to realize using BRICKs for area lighting just outside hazardous location (HAZLOC) areas are not only cost effective but meet this primary objective.</p>
<p>The BRICKSkid™ can be used in place of the standard generator-driven light towers. Especially when working around HAZLOC areas such as active well heads or drill sites. This explosion proof light tower will also remove any concerns of having a gas-driven engine operating near the entrance of a confined space area. Also eliminate environmental issues like fueling, drip pans, maintenance, noise, emissions, etc.</p>


brickskid-lighthead-arrangement-web-3

BRICKSkid-Lighthead-Arrangement-WEB

group-1000001803

Group 1000001803

brickskid_extended_night-lightson-3

BRICKSkid_Extended_Night-LightsOn

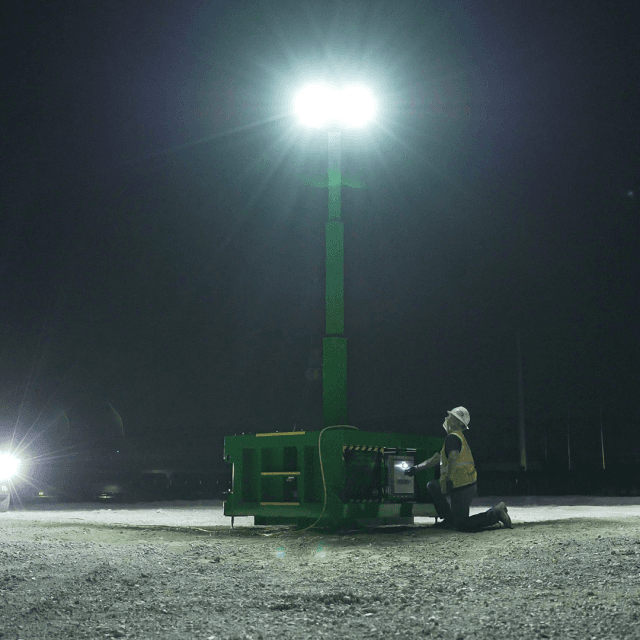

Zero Emissions Explosion Proof Light Tower

Temporary Ex Lighting

Tower Light

Portable Explosion Proof Light Tower built with Spark-Free Aluminum Construction featuring 4 BRICK® Explosion Proof Lights

AJV Tech's explosion-proof light tower with zero emissions offers reliable, safe illumination for hazardous environments. Contact us today for more information!

Zero Emissions Explosion Proof Light Tower
